Overview

Classifications allow items and systems to be built into a hierarchy of parent/child relationships. Adding a child to a parents will allow the child item to inherit properties from the parent.

Requirements

To add classifications, you must have the classification_user role

Procedure

  1. In the Service Management Navigator, select Stave AssetPath > Configuration > Classifications.

  2. Press the New button at the top of the table. This will bring you to a new record form.

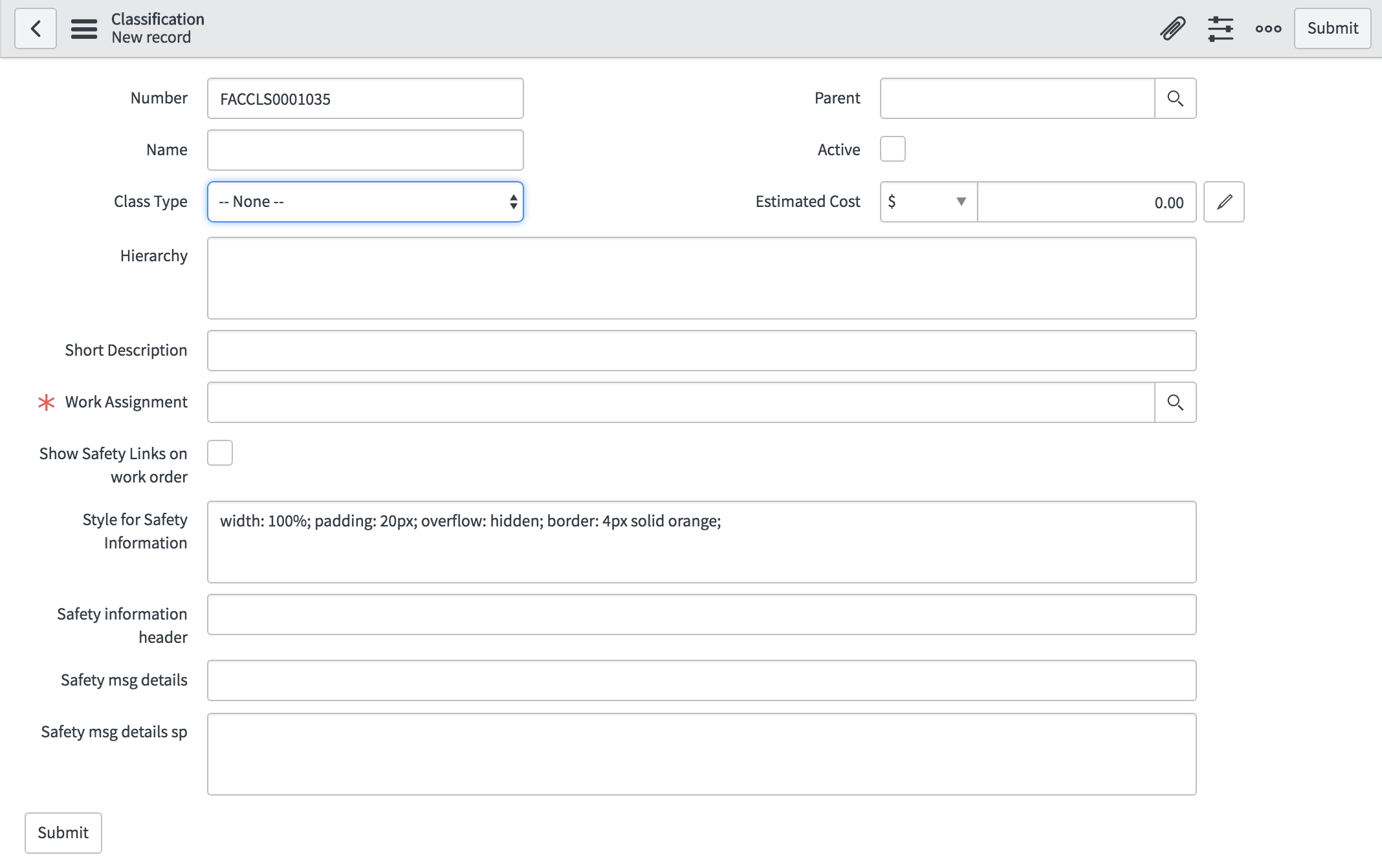

    3. New Classification Form


    Field
    		Description
    Number
    		Unique Identifier for the classification.
    Name
    		Classification name.
    Class Type
    		Classification type.
    Parent
    		Parent classification.
    Active
    		Check if classification is actively running.
    Estimated Cost
    		Estimated cost for failure.
    Hierarchy
    		Describes the classification hierarchy which includes classification parents.
    Short Description
    		A written short description of the classification.
    Work Assignment
    		Group assigned to classification.
    Show Safety Links on work order
    		Check to show safety links on work orders under the classification.
    Style for Safety Information
    		Styling for safety information.
    Safety information header
    		Safety information title header.
    Safety msg details
    		Safety information body text.
    Safety msg details sp
    		Details shown in the service portal UI.

  3. Once the form is filled out, press the Submit button located at the bottom. This creates a new record in the classification table.
